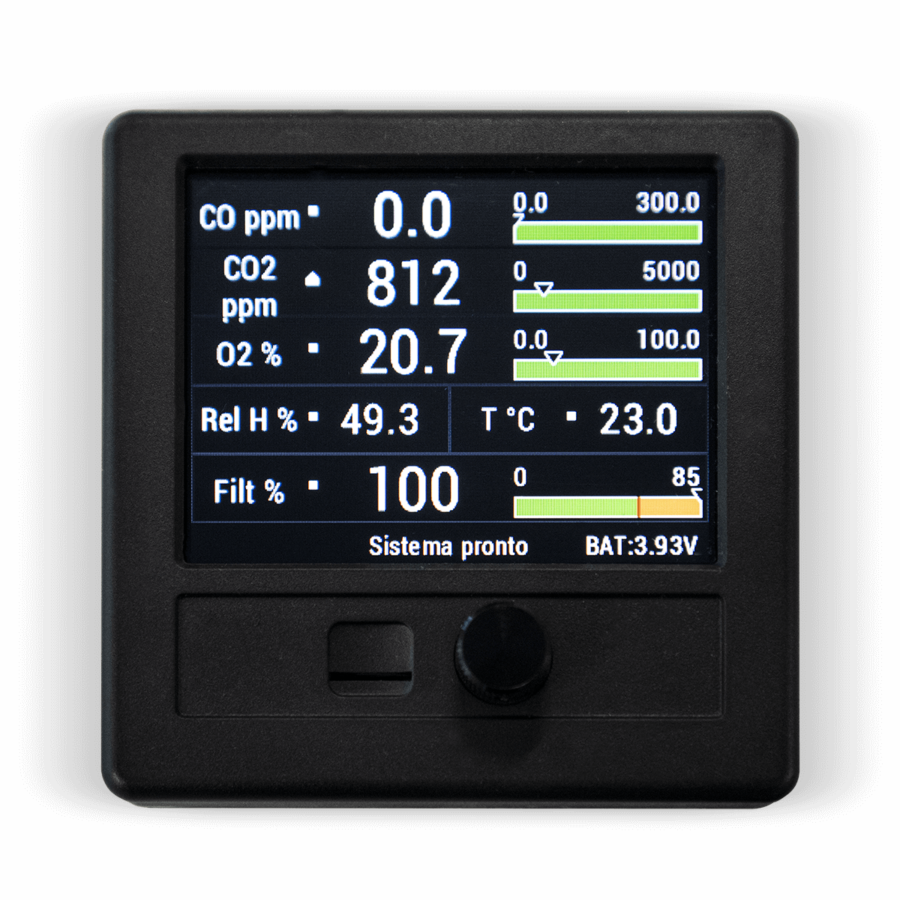

CO + CO2 + H2O Multigas Analysis System
Product information
The Coltri Multigas Analysis System is a measuring instrument capable of monitoring air quality. Its application includes continuous monitoring of environmental gases, hyperbaric chambers, safety, medical, air quality.
Available sensors:
• Oxygen O 2
• Carbon dioxide CO 2
• Carbon monoxide CO
• Humidity H. 2 OR
• Gas temperature
• Helium in the air
By choosing the SAM Multigas Analysis System it is not possible to install the Presec system as well.
General specifications
|
Input voltage requirement |
10-35 Vdc |
|
Internal battery |
Li-ion rechargeable battery. One 1400 mAh Li ion 3.7 V cell |
|
Sensors |
Up to 6 sensors |
|
Exit |
Acoustic alarm |
|
Serial connection |
1 RS232 interface. Transmission speed up to 115000 baud, on request RS485 interface |
|
Measurement resolution |
24-bit bipolar A / D converter. Drift in automatic temperature compensation |
|
Conversion rate |
10 ms |
|
Sampling time |
100 ms (min) for each channel |
|
Signal measurement accuracy |
0.1% Full scale +/- ½ LSB |
|
Input device |
Rotating knob with central thrust |
|
Color display |
TFT resolution 320 x 240 dots, led backlight |
|
View the intensity of the light |
600 nits (cd / m2) |
|
Memory |
Micro SD card writer / SD card reader |
|
Microprocessor |
Cortex M4 |
ACOUSTIC ALARM On board there is an alarm for the acoustic warning.
SERIAL INTERFACE Standard RS232 interface for connection to the PC. it is possible to read the measurements remotely and program the instrument. software available upon request is required.
NON-VOLATILE MEMORY SAM is equipped with non-volatile memory which keeps configuration data and settings for 10 years without power.
