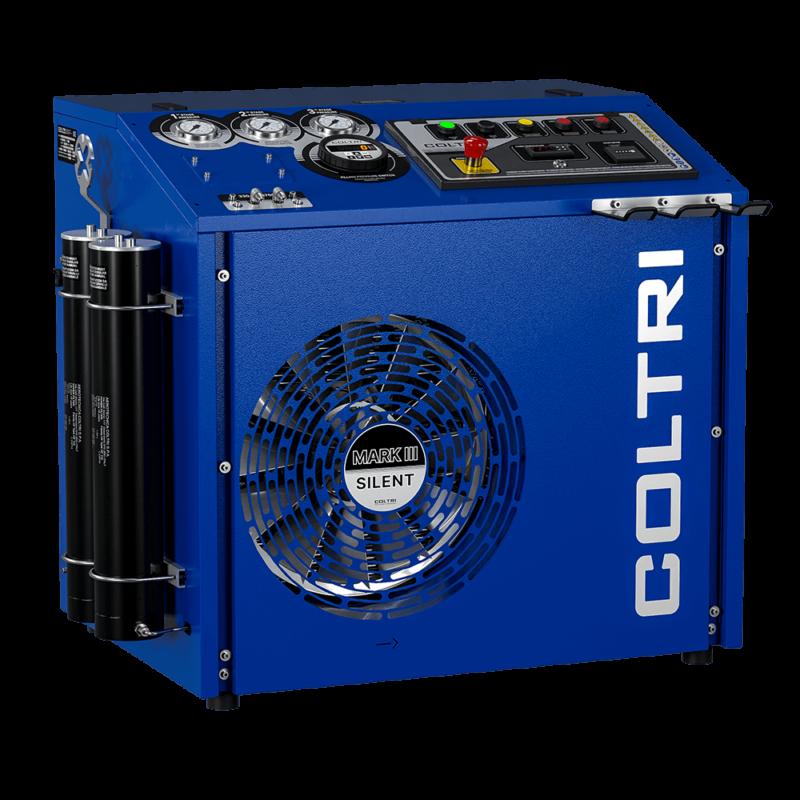

The Super Silent TPS model is specially designed to minimize noise. It is designed with an enhanced cooling system, a sound isolation system and an efficient filtering system with two Hyperfilters. Powered by a three-phase electric motor, it is equipped with four different pumping units, all in TPS (Tropical Plus Superdry) version, and available with a dedicated control panel. For a longer filter duration the Tornado Refrigerator is also available.

Pumping group

Monobloc in aluminum,
Crankshaft in forged steel
Forced lubrication on 2nd and 3rd stage cylinders by gear pump
Oversized interstage cooling pipes
Forged aluminum connecting rods
Main roller bearings
Roller connecting rod bearings
1st and 2nd stage cylinders in aluminum with hard nicasil coating
2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
3rd stage cylinder in special treated steel.
Stainless steel intake and exhaust valves
Interstage cooling pipes in stainless steel
Separator after the 2nd and 3rd stage
Safety valves after each stage
Prepared for Hyperfilter filter system
Oil filtration
Double final separator

Purification at the highest level.

Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³. CATALOGUE

Electrical cabinet

ON / OFF switch with motor protection switch.
Digital electronic pressure switch that stops the compressor at the final pressure.
Drainage of all separators between the individual stages and also of the final separator during compressor operation
Timer for automatic condensate drain.
Integrated no-load start (automatic drain every time the unit is switched off).
5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate.
Interstage pressure gauges display the working pressure for the individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and to quickly identify potential sources of failure.

Chassis

Silenced chassis made for environments that require a low noise level. The oil level and drain reported outside, the control console equipped with inter-stage pressure gauges, the internal temperature indicator, the alarm presence and incorrect phase sequence, the oil lack alarm and the start-stop commands and manual condensate drain allow easy management and maintenance of the compressor.

SUPER SILENT TPS

SUPER SILENT TPS

SUPER SILENT TPS

SUPER SILENT TPS

235 ET

315 ET

345 ET

380 ET

2 FILLING CONNECTION (DIN 232 OR DIN 300 OR INT/YOKE 232 BAR)

•

•

•

•

2 FILLING HOSE 1.2 M

•

•

•

•

PRESSURE MAINTAINING VALVE

•

•

•

•

PRESSURE GAUGES interstage control

•

•

•

•

DOUBLE HYPERFILTER FILTRATION PED certificated

•

•

•

•

THERMOSTAT cabin temperature thermostat/auto shut off

•

•

•

•

AUTOMATIC CONDENSATE DRAIN

•

•

•

•

PHASE CONTROLLER that prohibiits revers rotation

•

•

•

•

PRESSURE SWITCH auto shut-off

•

•

•

•

OIL LEVEL switch/auto shut-off

•

•

•

•

OIL PUMP

•

•

•

•

FRAME COLOR BLUE RAL 5002

•

•

•

•

OPTIONAL

C-MONITOR

REMOTE FILLING PANEL DOUBLE PRESSURE
(chosen from DRV DIN 232 bar + DRV DIN 300 bar or DRV INT/YOKE 232

bar + DRV DIN 300 bar). Including Priority Panel.

SAM MULTIGAS - CO + CO2 + H2O

SAM MULTIGAS - CO + CO2 + H2O WITH VOC TORNADO REFRIGERATOR - DRYER 350 bar

TORNADO REFRIGERATOR - DRYER 420

DRV DIN 232 BAR

DRV DIN 300 BAR

DIN/INT adapter

DRV INT/YOKE 232 bar

FILLING HOSE length 2 m

FILLING HOSE length 3 m

FILLING HOSE length 5 m

FILLING HOSE length 10 m

AIR FILTER CARTRIDGES HYPERFILTER
A: WITH MOLECULAR SIEVE AND ACTIVATED CARBON

AIR FILTER CARTRIDGES HYPERFILTER B: WITH MOLECULAR SIEVE ONLY

AIR FILTER CARTRIDGES HYPERFILTER
D: WITH MOLECULAR SIEVE, ACTIVATED CARBON AND CO-CATALYST

FELTS FOR HYPERFILTER 10pcs

CAPS AND DISCS KIT FOR HYPERFILTER AIR FILTER CARTRIDGE 6pcs kit

SYNTHETIC COLTRI OIL ST 755 1 L

MOLECULAR SIEVE 1 L

ACTIVATED CARBON 1 L

CO CATALYST 1 L
