SUPER SILENT TPS HYPER FILTRATION BLUE TWIN FILL WHIP PRIME COMPRESSOR RANGE

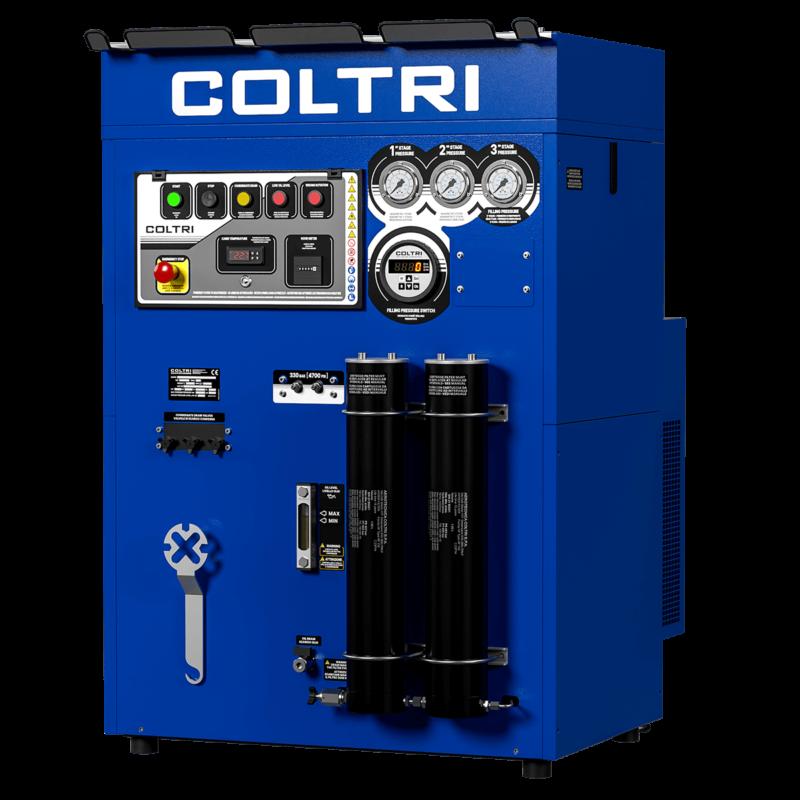

The Super Silent TPS model is specially designed to minimize noise. It is designed with an enhanced cooling system, a sound isolation system and an efficient filtering system with two Hyperfilters. Powered by a three-phase electric motor, it is equipped with four different pumping units, all in TPS (Tropical Plus Superdry) version, and available with a dedicated control panel. For a longer filter duration the Tornado Refrigerator is also available.

Pumping group

• Monobloc in aluminum,
• Crankshaft in forged steel
• Forced lubrication on 2nd and 3rd stage cylinders by gear pump
• Oversized interstage cooling pipes
• Forged aluminum connecting rods
• Main roller bearings
• Roller connecting rod bearings
• 1st and 2nd stage cylinders in aluminum with hard nicasil coating
• 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
• 3rd stage cylinder in special treated steel.
• Stainless steel intake and exhaust valves
• Interstage cooling pipes in stainless steel
• Separator after the 2nd and 3rd stage
• Safety valves after each stage
• Prepared for Hyperfilter filter system
• Oil filtration
• Double final separator

Purification at the highest level.

Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³. CATALOGUE

Electrical cabinet

• ON / OFF switch with motor protection switch.
• Digital electronic pressure switch that stops the compressor at the final pressure.
• Drainage of all separators between the individual stages and also of the final separator during compressor operation
• Timer for automatic condensate drain.
• Integrated no-load start (automatic drain every time the unit is switched off).
• 5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate.
• Interstage pressure gauges display the working pressure for the individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and to quickly identify potential sources of failure.

Chassis

Silenced chassis made for environments that require a low noise level. The oil level and drain reported outside, the control console equipped with inter-stage pressure gauges, the internal temperature indicator, the alarm presence and incorrect phase sequence, the oil lack alarm and the start-stop commands and manual condensate drain allow easy management and maintenance of the compressor.
