MARK III SILENT TPS HYPER FILTRATION BLUE TWIN FILL WHIP PRIME COMPRESSOR RANGE

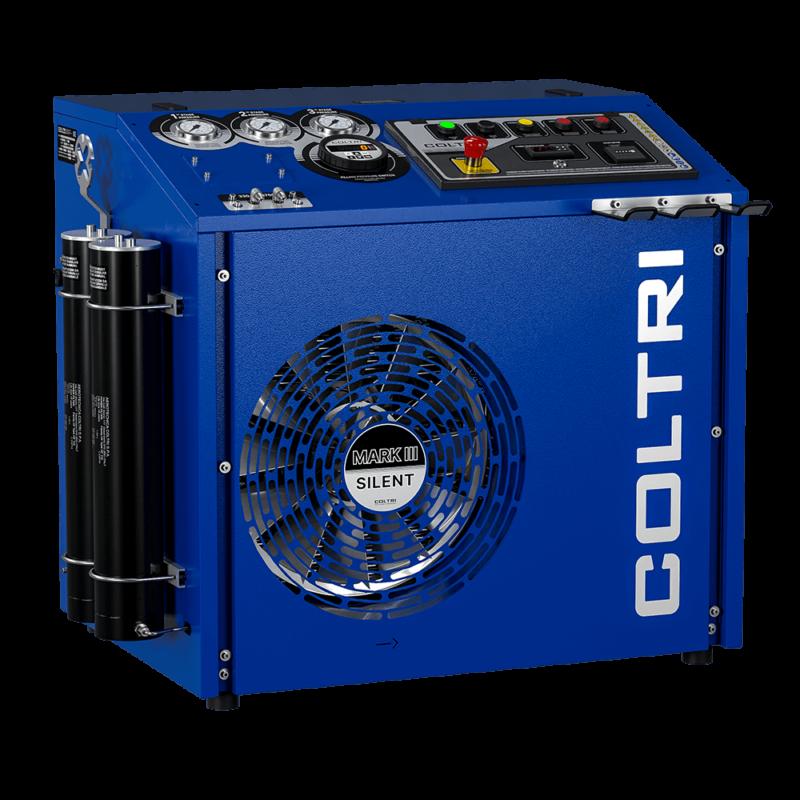

Mark III Silent TPS line includes a series of uncompromising models designed for intensive use in hot, poorly ventilated environments or in tropical countries. Designed with an improved cooling system and a filtering system with two Hyperfilters, they are powered by a three-phase electric motor and equipped with four different pumping units, all in TPS (Tropical Plus Superdry) version. They are available with function monitoring systems and electrical panel for automatic compressor shutdown. CATALOGUE

3-stage high pressure pumping unit.

• Monobloc in aluminum,
• Crankshaft in forged steel
• Forced lubrication on 2nd and 3rd stage cylinders by gear pump
• Oversized interstage cooling pipes
• Forged aluminum connecting rods
• Main roller bearings
• Roller connecting rod bearings
• 1st and 2nd stage cylinders in aluminum with hard nicasil coating
• 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
• 3rd stage cylinder in special treated steel.
• Stainless steel intake and exhaust valves
• Interstage cooling pipes in stainless steel
• Separator after the 2nd and 3rd stage
• Safety valves after each stage
• Prepared for Hyperfilter filter system
• Oil filtration
• Double final separator

Purification at the highest level.

Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³.

Electrical cabinet

• ON / OFF switch with motor protection switch.
• Digital electronic pressure switch that stops the compressor at the final pressure.
• Drainage of all separators between the individual stages and also of the final separator during compressor operation
• Timer for automatic condensate drain.
• Integrated no-load start (automatic drain every time the unit is switched off).
• 5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate.
• Interstage pressure gauges display the working pressure for the individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and to quickly identify potential sources of failure.

Chassis

Silenced cab chassis designed and built to facilitate maintenance operations. The tilting motor-holder plate ensures constant V-belt tension. Compressor management and maintenance are facilitated by important devices and tools: the oil level and drain shown outside, the control console equipped with inter-stage pressure gauges, the internal temperature indicator, the presence alarm and incorrect phase sequence, the oil lack alarm and the start stop and manual condensate drain commands.
